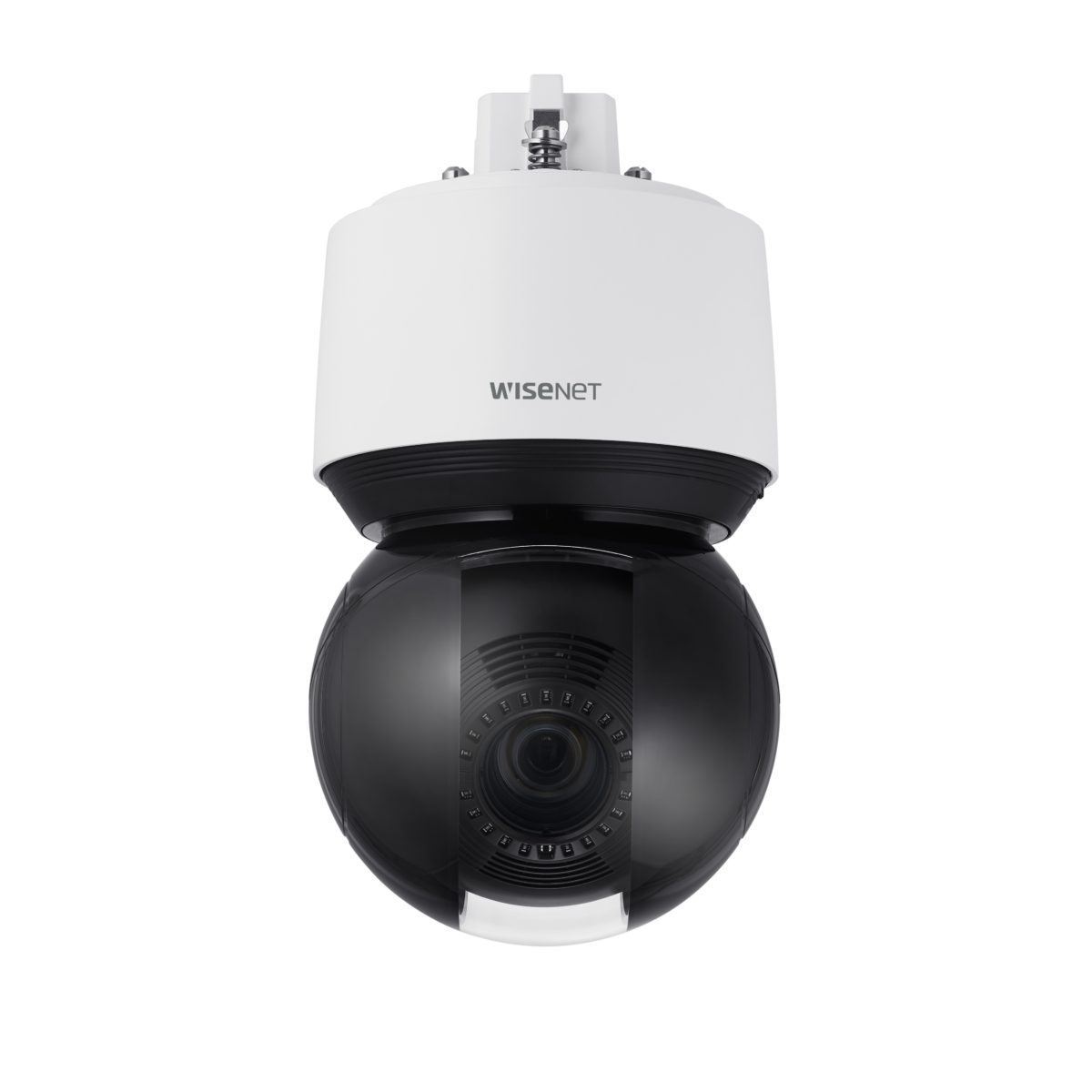

La caméra XNP-9250 est une PTZ 4K avec un zoom optique 25x
Caractéristiques principales
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8″ CMOS | |
| Resolution | 3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Min. Illumination | Color: 0.1Lux(F1.6, 1/30sec) BW: 0.01Lux(F1.6, 1/30sec) |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 5~125mm(25x) zoom (digital 32x, total 800x zoom) | |
| Max. Aperture Ratio | F1.6(Wide)~F3.73(Tele) | |
| Angular Field of View | H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele) | |
| Min. Object Distance | 3m(9.84ft) | |
| Focus Control | Oneshot AF, Focus save | |
| Lens Type | DC auto iris | |
| Pan / Tilt / Rotate | ||
| Pan Range | 360° Endless | |
| Pan Speed | Max. 700°/sec, Manual: 0.024°/sec~250°/sec | |
| Tilt Range | 110°(-20°~90°) | |
| Tilt Speed | Max. 500°/sec, Manual: 0.024°/sec~250°/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | Up to ±0.1°, Pan/Tilt correction | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Direction Indicator | Support | |
| Day & Night | Auto(ICR)/Color/BW/Schedule | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | Extreme WDR(120dB) | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, Quadrangle Support – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection * Audio detection, Sound classification(with NW I/O Box) |
|
| Alarm Triggers | Analytics, Network disconnect * Alarm input(with NW I/O Box) |
|
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover * Alarm output(with NW I/O Box) |
|
| Water Removal | Support(Spinning dry) | |
| Auto Tracking | Object auto tracking(Person/Vehicle), Target lock tracking | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP, NTCIP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) |
|
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
|
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB | |
| Memory | 4GB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / +74°C/+165°F (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C Less than 95% RH(Non-condensing) |
|
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | |
| Certification | IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) | |
| Input Voltage | PoE+(IEEE802.3at, Class4) | |
| Power Consumption | Typical 20W, Max 25W | |
| Mechanical | ||
| Color / Material | Body : White / Aluminum Head : Black / Polycarbontate Hard-coated dome |
|
| RAL Code | White: RAL9003 / Black: RAL9005 | |
| Product Dimensions / Weight | Ø158×293.3mm(6.22×11.55″) / 3.2Kg(7.05lb) | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide: 140.2m(460.0ft) / Tele: 3246.9m(10652.4ft) | |
| Observe (63PPM/ 19PPF) | Wide: 56.1m(184.0ft) / Tele: 1298.7m(4261.0ft) | |
| Recognize (125PPM/ 38PPF) | Wide: 28.0m(92.0ft) / Tele: 649.4m(2130.5ft) | |
| Identify (250PPM/ 76PPF) | Wide: 14.0m(46.0ft) / Tele: 324.7m(1065.2ft) | |
